Metal Enclosed Switchgear

About This Project

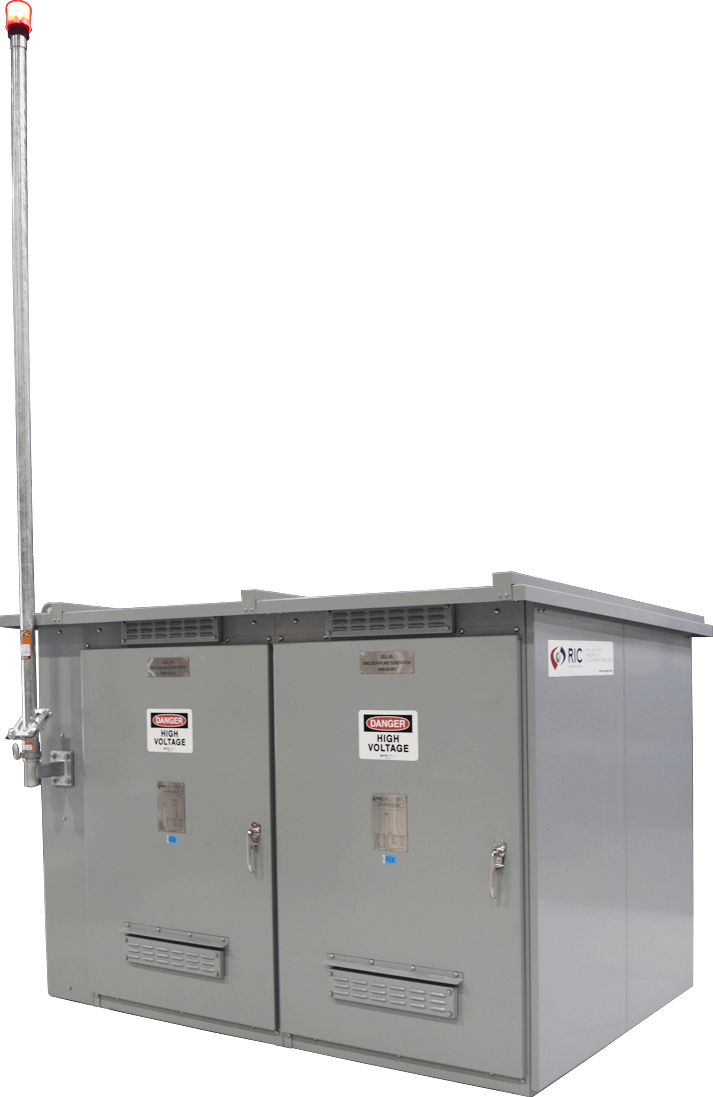

5 kV, NEMA 3R Metal Enclosed Switchgear for a mine in the Northwest Territories. This required short design height in order to fit on a 737 freighter. The enclosure is suitable for installation in -40°C climate.

RATING

5kV, 1200A, 31.5kAIC

SWITCHING DEVICES

ABB NAL Loadbreak Switch
Tavrida LD Series Breaker

RELAY/METERS

Eaton EDR-5000
Eaton PMX-2260
